Unrivaled Face Recognition Performance by Fusion Matching: Suprema’s Fusion Matching technology combines the IR and visual face recognition with unique deep learning algorithm to achieve exceptional authentication accuracy and industry’s best anti-spoofing performance.; False Acceptance Rate (FAR) of 1 in 10 billion

Best-in-Class Multimodal with Various Credentials: Offering credential options of face, fingerprint, cards and mobile access, FaceStation F2 is the best-in-class multimodal device in the industry. It also supports dual frequency access cards, NFC and BLE-based Mobile Access Cards as well as Template on Card that allows authentication via biometric data stored in cards.

Unmatched Facial Recognition Efficiency
Multiple Access Control Technologies
Identification with or without a Mask
High Security and Encrypted Data
Large Memory Capacity
Excellent User Experience
Suitable for Various Environments (Indoor and Outdoor)
Elevated Skin Temperature Detection (Optional)
System Configuration

Category	Feature		FSF2-DB	FSF2-AB	FSF2-ODB
Credential	Biometric		Face		Face, Fingerprint
	RF Option		125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa	125kHz EM, HID Prox & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa, iCLASS SE/SR/Seos	125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa
	RF read range*		EM/MIFARE/DESFire : 50 mm (2"), FeliCa: 30 mm (1.2") * RF read range will vary depending on the installation environment
	Mobile		NFC, BLE
General	CPU		1.8 GHz Dual Core + 1.4 GHz Quad Core
	Memory		16GB Flash + 2GB RAM
	LCD type		7” IPS color LCD
	LCD resolution		800 x 1280 pixels
	Sound		16bit
	Operating temperature		-20°C ~ 50°C (-68°F ~ 122°F)
	Operating humidity		0% ~ 80%, non-condensing
	Dimension (W x H x D)		119.8mm x 223mm x 23.5mm (4.7"" x 8.8"" x 0.9"")		119.8mm x 268.4mm x 49.7mm (4.7" x 10.6" x 1.9")
	Weight	Device	585g		670g
	Weight	Bracket (Including washer and bolt)	181g		205g
	IP rating		IP65
	Certificates		CE, FCC, KC, RoHS, REACH, WEEE
Face	Recognition Distance		0.5m ~ 1.3m (19.7" ~ 51.2")
	Recognition Height		140cm ~ 190cm (55.1" ~ 74.8")
	Matching speed		Less than 0.5 sec
	Anti-Spoofing		Supported
Fingerprint	Image dimension		N/A		300 x 400 pixels
	Resolution				500 dpi
	Template				SUPREMA / ISO19794-2, ANSI-378
	Extractor / Matcher				MINEX certified and compliant
	Sensor Certificates				FBI PIV and FBI Mobile ID FAP20
	Live Fingerprint Detection				Supported (SW-based)
Capacity	Max. User (1:1) * Based on one face/fingerprint enrollment per user		100,000
	Max. User (1:N) * Based on one face/fingerprint enrollment per user		Face: 50,000		Face: 50,000 Fingerprint: 100,000
	Max. Text Log		5,000,000
	Max. Image Log		50,000
Interface	Ethernet		10/100 Mbps, auto MDI/MDIX
	RS-485		1ch Host or Slave (Selectable)
	Wiegand		1ch Input or Output (Selectable)
	TTL input		2ch Inputs
	Relay		1 Relay
	USB		USB 2.0 (Host)
	Tamper		Supported
Power			Voltage: DC 12V ~ DC 24V Current: Max. 2.5 A *Use a 24V/2.5A adapter. Must follow the product manual when using a 12V adapter.

Biometric Readers

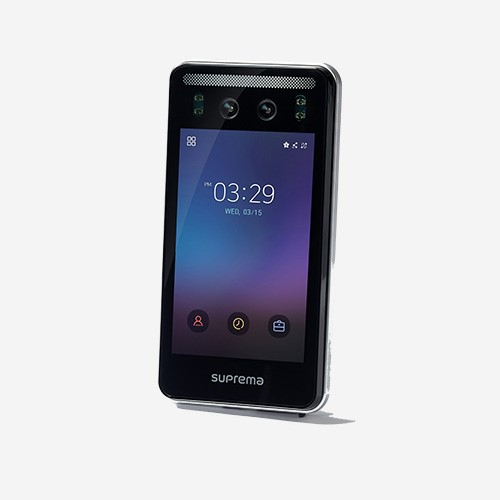

FaceStation F2:
